| Model
Function | AN9636HC(F ACW/DCW/IR | AN9637HC(F) ACW/DCW/IR/GB | AN9637HC8(F) ACW/DCW/IR/GB |
| AC withstand Voltage (ACW) | 5kVac/100mA (optional 200mA) |
| DC withstand Voltage (DCW) | 6kVdc/20mA |
| Insulation Resistance (IR) | 6kVdc/50GΩ |
| AC Ground Bond Resistance (GB) | None | 40Aac/600mΩ |
| DC Ground Bond Resistance (DCGB) | (Optional 40A/60A/100A card) |
| Multiple Cards | Optional multi-channel ACW/DCW scanning card, multi-channel GB scanning card.and DC low resistance card:(When more than one card is inserted, additional 1U chassis height shall be added for each additional card, and 2U height for 100A DCGB card) | Standard 5W3G card |
| Operation Interface | Color LCD, numeric keypad, RS232PLCUSBLAN (optional) interface |
| Informatization | USB storage, barcode recognition and automatic program matching,optional ESRS measurement and control software which can be integrated with MES system |
| Dimensions (W*H*D mm) | 426*132*520 |
Flashover and Arc
In relevant electrical safety regulations and standards, the general requirement for determining electrical strength testis that under the specified test voltage and test time conditions, the insulator should not experience breakdown or flashover. The destructive discharge along the surface of an insulator is called flashover, while the destructive discharge along the interior of the insulator is called breakdown. Arc is as discharge phenomenon, where instantaneous spark is generated when current passes through certain insulating media(such as air).

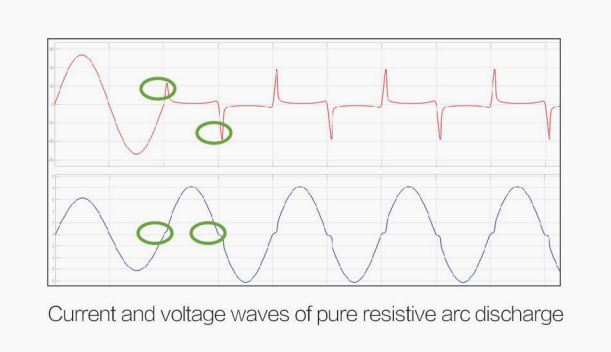

The series analyzer has arc detection function (ARC), arc levels of 0~9 can be set in ACW and DCW, to detect flashover or arc discharge during ACW/DCW test process.
Protective Design for Operator Safety
When the Interlock control is enabled, this signal can be used as a detection signal for personnel entering the safety test area or for open grid gate of the test bench. Once the analyzer detects circuit break in this signal, the output will be stopped and the test cannot be started.

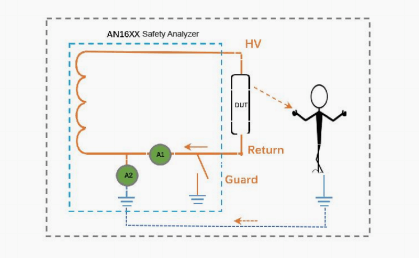

DUT grounding.This series analyzer has two modes: DUT case grounding(Guard)or floating grounding(Return).When selecting Guard mode, the Return terminal of the analyzer will maintain safe conductive state with PE to prevent operators from accidentally touching the DUT housing and getting electric shock during ACW/DCW test process. In this mode, stray leakage current through the ground will pass through ammeter A1, causing higher leakage current and lower insulation resistance.
Leakage protection GFI. When the leakage current of high-voltage output HV leaks to the safe PE terminal through the operator or DUT housing, the leakage current will be detected by ammeter A2. When it exceeds the limit.the analyzer will stop the high-voltage output and trigger GFI alarm.

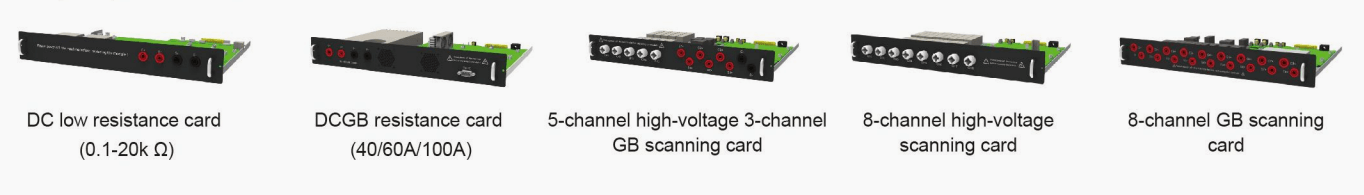

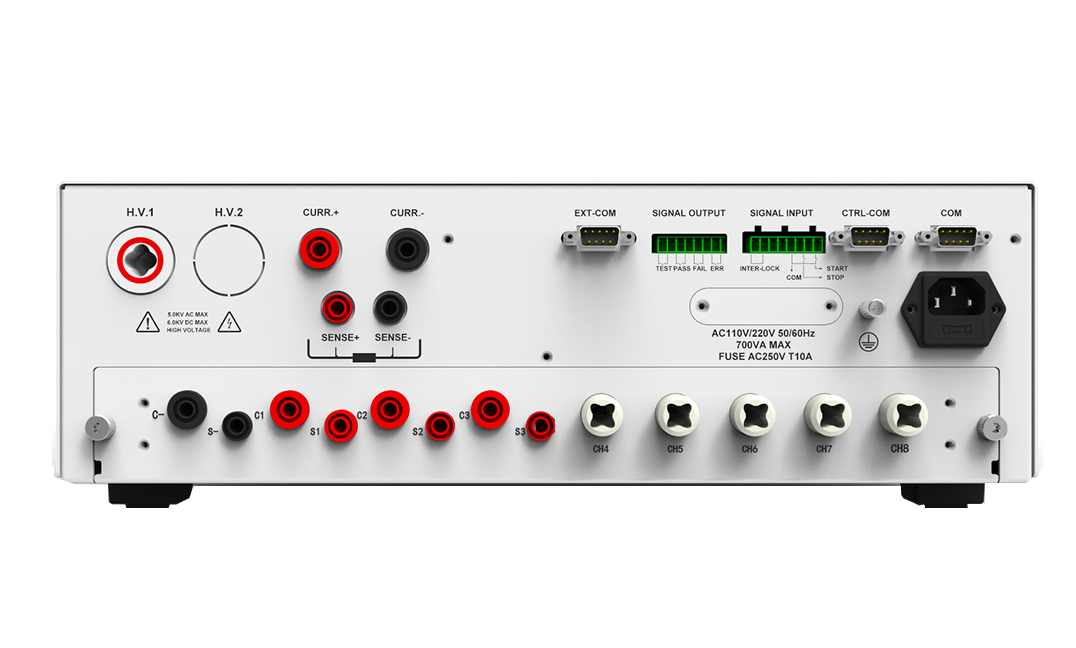

Multiple Optional Cards
