Insulation Resistance Tester ANBTS7101(F) Series

For the ANBTS7101(F) Series Insulation Resistance Tester, addressing the weaknesses ofconventional CV mode insulation resistance testers in the testing process of electrical productswith relatively large static capacitance, such as lithium battery cells, including long ramp-uptime, slow discharge process, large insulation resistance value fluctuations, and poor repeatability, the ANBTS7101(F) Series Tester uses an innovative mode of CC charging, CVpressure holding, and CC discharging to realize fast, accurate, and safe testing of insulationresistance for electrical products with large capacitance characteristics.

The ANBTS7101(F) Series Tester is suitable for insulation resistance testing of electricalproducts with relatively large static capacitance, such as power batteries, energy storagebatteries, 3C batteries, super capacitors, aluminum electrolytic capacitors etc.

Download Latest Product Catalog

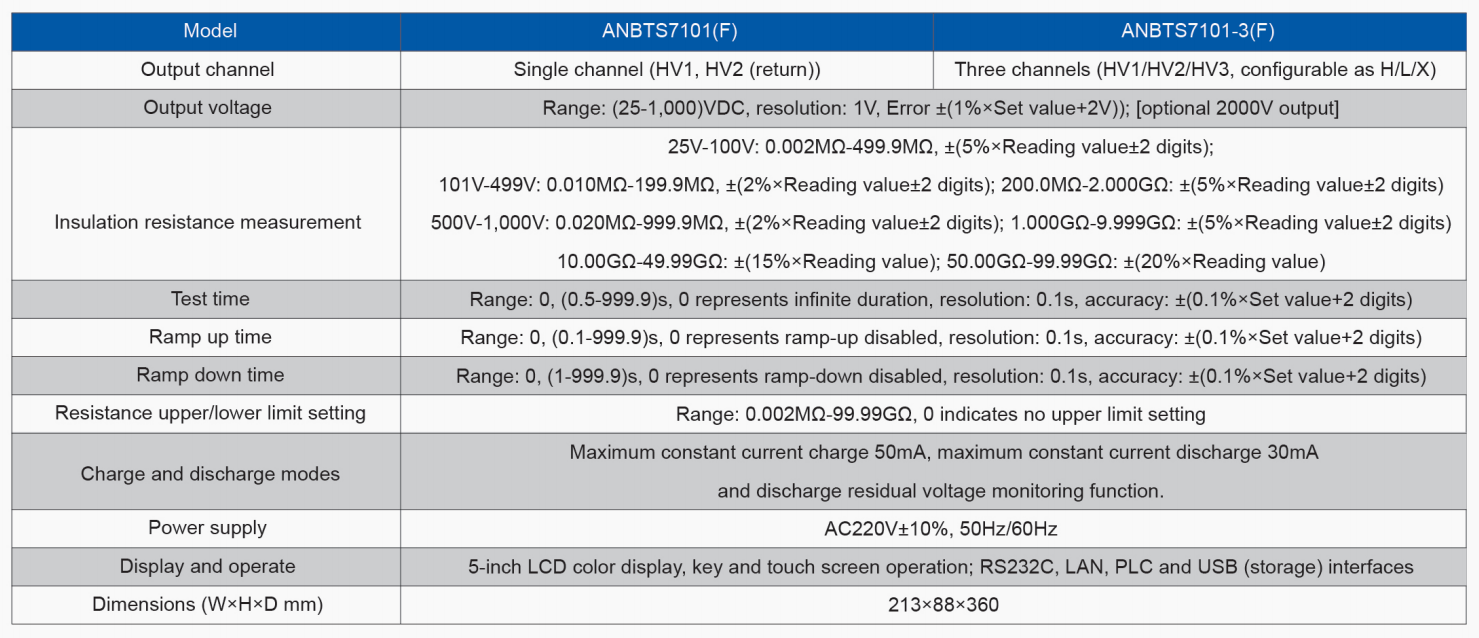

Wide Range

voltage 25V-2,000V and resistance 2kΩ-100GΩ, allowing for accurate testing of a wide voltage range and high insulation resistance values.

High Velocity

50mA quick CC charging, CV pressure holding test and 30mA quick CC discharge mode, capable of conducting quick insulation test of super capacitor up to 500uF.

High Accuracy

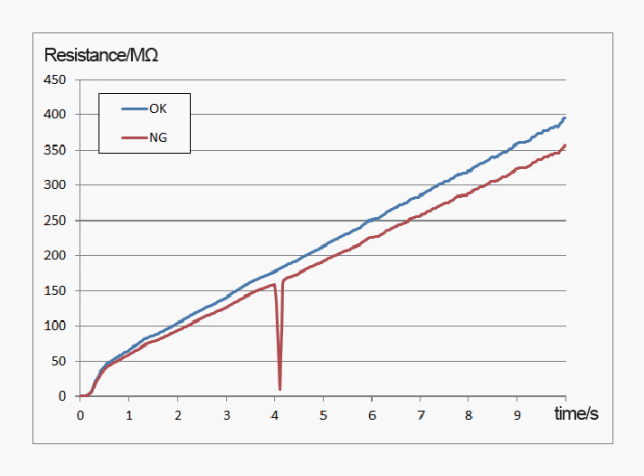

Support the double judgment of the resulting values and the process values, the automatic upload of the process data.

Easy to Use

Small in size, with rich interfaces and simple operation, particularly convenient for automated production lines and system integration use.

Quality control of the production, warehousing, and outbound processes of lithium battery single cells, battery modules, and battery packs.
