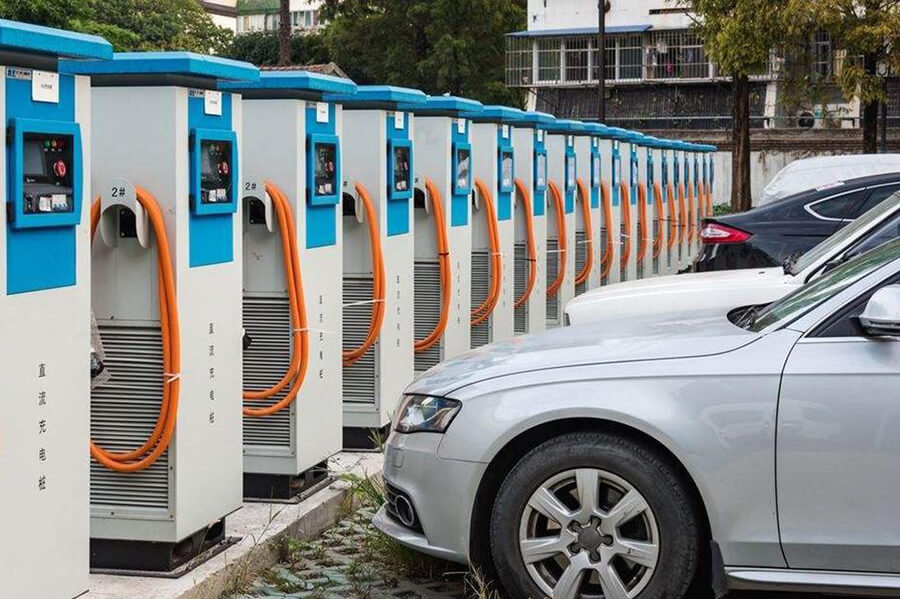

The electric vehicle revolution is accelerating, and at the heart of this transition lies a critical piece of infrastructure: the EV charger. These are not simple power outlets; they are sophisticated bi-directional power electronics systems that must communicate seamlessly with the grid and the vehicle. Ensuring they are safe, reliable, and grid-friendly is a monumental engineering challenge. Traditional testing methods are no longer sufficient. This is where the regenerative grid simulator emerges as an indispensable tool for manufacturers and test labs.
But why is this specific technology so crucial? Let's delve into the complexities of EV charger testing, how regenerative grid simulators provide the solution, their key features, and what the future holds.
The Mounting Difficulties of Testing Modern EV Chargers
Testing an EV charger goes far beyond simply checking if it can deliver a charge. Engineers face a multi-faceted challenge:
1. The Power Problem: High-power DC fast chargers (DCFC) can draw 350kW, 500kW, or even more. Using a traditional "dissipative" load and a standard AC source to test at these power levels is enormously expensive. The electricity costs alone are staggering, and all that energy is converted into massive amounts of heat, requiring even more power for intense cooling systems in the test lab. This creates a "test energy penalty" that is financially and environmentally unsustainable.
2. Bi-Directional Power Flow (V2G): Modern chargers, especially for Vehicle-to-Grid (V2G) applications, are designed to push energy back into the power grid from the EV's battery. Testing this reverse power flow with traditional equipment is complex and dangerous. You need a system that can not only source power but also sink it realistically, mimicking how the real grid would absorb energy.

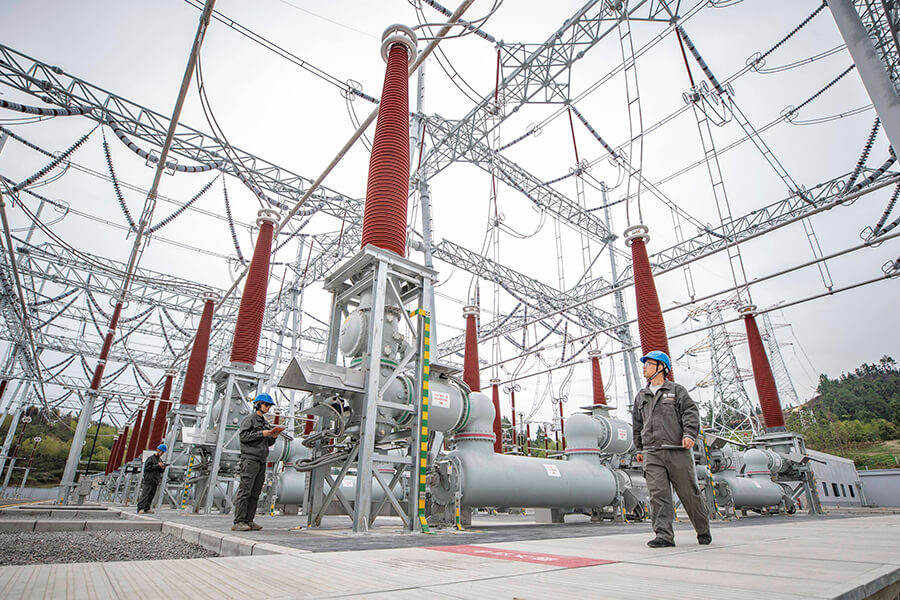

3. Real-World Grid Conditions: The grid is not a perfect, stable 50/60Hz sine wave. It's a dynamic, often "dirty" environment. Chargers must be tested to ensure they can handle:
o Voltage Sags and Swells (Dip & Surge): Brownouts or sudden spikes in voltage.
o Frequency Variations: Small changes in grid frequency.
o Harmonic Distortion: Noise on the line caused by other industrial equipment.
o Fault Conditions: Short circuits on the grid.
Creating these imperfect, dynamic grid conditions with a stable AC power source is impossible. You need a regenerative grid emulator AC power supply.
4. Compliance and Standards: To be certified for market, EV chargers must comply with a growing list of international standards. These include:
o IEEE 1547: For interconnection and interoperability with the grid.
o UL 1741 SA (Supplement SA): Specifically for inverters, including EVSE, requiring advanced grid support functions like frequency-watt and volt-watt response.
o IEC 61851 & ISO 15118: Covering the communication protocols between the vehicle and the charger.
Manually testing all these scenarios across hundreds of data points is time-consuming and prone to human error.
How the Regenerative Grid Simulator Solves These Difficulties?

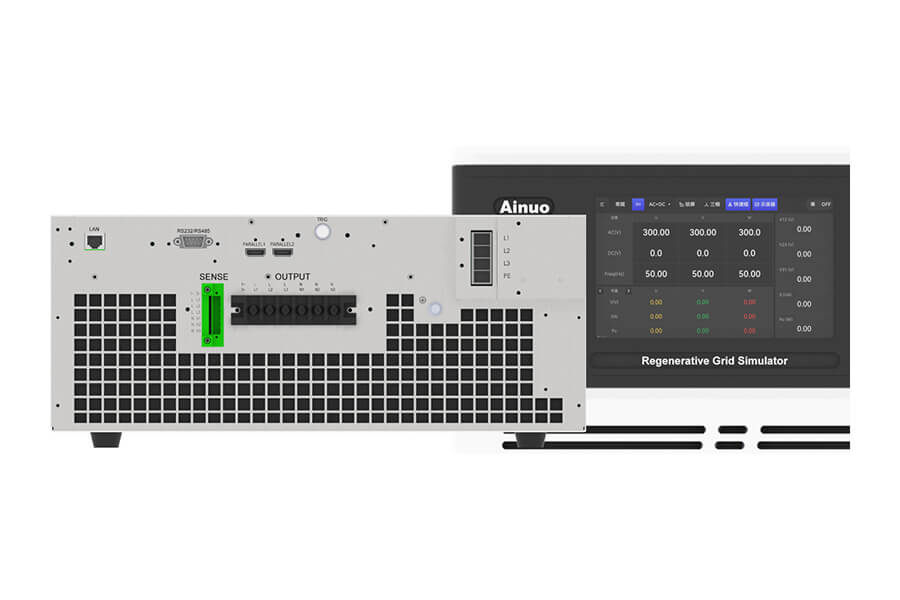

A regenerative grid simulator is a sophisticated four-quadrant power amplifier. Unlike a simple power supply, it can both source and sink power intelligently, acting as both the grid and the load. Here’s how it tackles the difficulties head-on:
· Solving the Power Problem with Energy Recycling: This is the "regenerative" advantage. Instead of burning millions of watts of energy into heat, the simulator recovers (or recycles) over 95% of the energy drawn from the grid during testing. When testing a charger in discharge mode (V2G), the simulator absorbs the power and pumps it cleanly back to its AC input, effectively slashing electricity bills by up to 90% and eliminating the need for massive heat dissipation systems. This makes high-power testing economically feasible.
· Enabling Accurate Bi-Directional Testing: The four-quadrant operation is key. The simulator seamlessly transitions between acting as the grid (sourcing power to the charger) and acting as a grid load (sinking power from the charger). This allows for full and efficient testing of all V2G functionalities in a controlled lab environment, ensuring the charger can safely and effectively push energy back to the grid according to standards.
· Emulating Real-World and Extreme Scenarios: A regenerative grid simulator is, first and foremost, a grid emulator. Test engineers can program it to replicate any grid scenario imaginable:
o Create precise voltage sags and swells to test ride-through capabilities.
o Inject specific harmonic profiles to ensure the charger doesn't contribute to grid pollution.
o Simulate grid faults like phase dropouts or imbalances.
o Mimic the weak grid conditions of a remote location.
This allows for "what-if" testing of worst-case scenarios that would be unsafe or impossible to create on the live grid.
· Automating Compliance Testing: These simulators are integrated with powerful software that allows engineers to automate test sequences. You can program the entire suite of UL 1741 SA tests, for example, and run them unattended overnight. The system collects all the data, provides pass/fail reports, and drastically reduces test time while improving accuracy and repeatability.
Key Features of a Regenerative Grid Simulator for EV Charger Testing
When selecting a simulator for EV charger testing, look for these essential features:
· High Power & Scalability: Units must be available in the hundreds of kW range and should be able to be paralleled for MW-scale testing, future-proofing your lab.
· Wide Voltage and Current Range: Must support the full range of AC voltages (e.g., 208V, 240V, 400V, 480V) and DC link voltages (up to 1000V or 1500V) used by modern chargers.
· Low Total Harmonic Distortion (THD): Must produce a "clean" AC waveform (<0.5% THD) to establish a baseline before adding distortions for testing.
· High Bandwidth & Precision: Crucial for accurately replicating fast transients, sub-cycle events, and precise waveforms as dictated by standards.
· Advanced Software Control: An intuitive software interface is non-negotiable. It should allow for easy script creation, waveform editing, sequence automation, and comprehensive data logging.
· Integrated Measurement: High-precision built-in analyzers to measure power quality, efficiency, and harmonic content without needing external equipment.
The Future: Testing for Tomorrow's Grid
The role of the regenerative grid simulator will only become more critical as the ecosystem evolves.
· Ultra-High Power Charging: Testing 1MW+ chargers for trucks and buses will be impossible without the energy savings of regenerative systems.
· AC & DC Microgrids: EV chargers will be key components in microgrids. Testing their stability and black-start capabilities in an islanded grid scenario requires advanced emulation.
· Advanced V2X (Vehicle-to-Everything): As V2G evolves into V2Home (V2H) and V2Load (V2L), testing the interaction between the charger, a home's solar panels, and the local load will require even more complex simulation setups.
· AI-Based Grid Interaction: Future chargers may use AI to optimize charging based on grid signals. Testing these smart algorithms will require a simulator that can run dynamic, real-time simulation models.
Conclusion
The regenerative grid simulator is far more than just a power supply; it is the linchpin of modern EV charger development and validation. It solves the fundamental economic and technical barriers to high-power testing by recycling energy, enabling safe bi-directional tests, and providing a platform to emulate the complex, real-world grid of today and tomorrow. Investing in this technology is not just about passing compliance tests; it's about accelerating the development of robust, grid-supportive EV infrastructure that will power our sustainable future. Without it, the road to electrification would be far longer and more uncertain.
