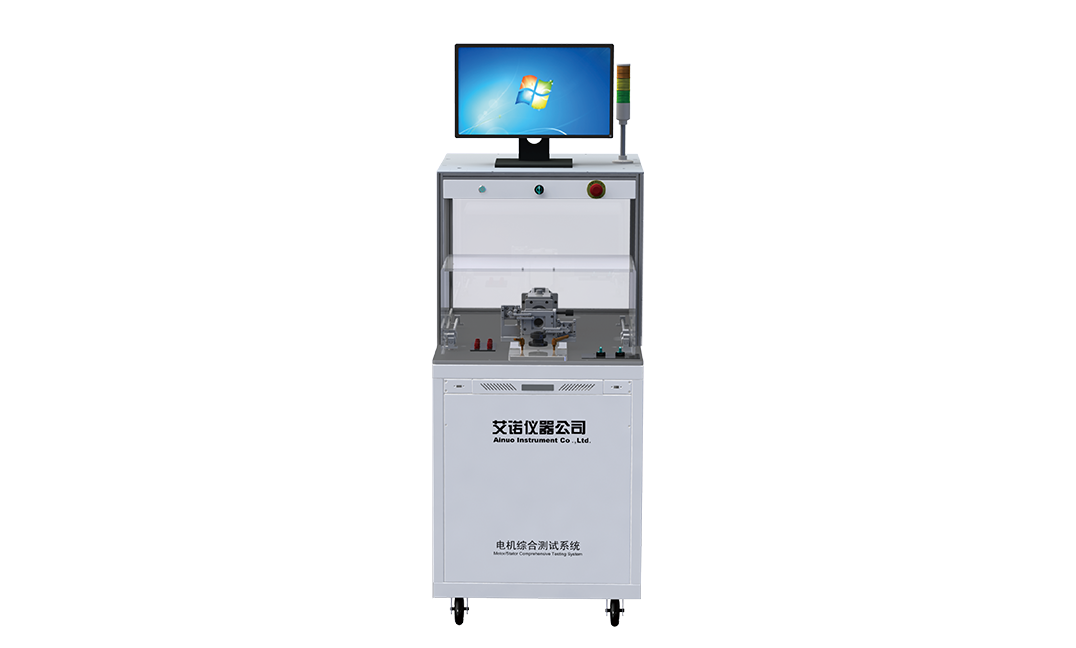

Comprehensive Motor Test Scheme
Product Model:
AN8356(F) Series
used in household brushless motors, electric vehicle motors, fan motors, drone motors, brushless power tools and other industries.
Product overview Product features Product application technical specifications
Product overview

This system is suitable for various types of brushless, servo machine static, air / load dynamic performance test.

Widely used in household brushless motor, servo motor, electric vehicle motor, fan motor, UAV motor, brushless power tools and other industries.

Product features

l  Broadband: signal detection of 0.5Hz~100KHz ultra-wideband.

l  High accuracy: measurement accuracy of voltage/current up to 0.2%.

l  Efficient: One-time wiring to complete all testing items such as static, no load, Hall signal, etc., high efficiency.

l  One-stop: self-developed AC/DC power supply, convenient and unified before/after sale.

l  Module: Module test unit to avoid interference, and customize single/multi-station, serial/parallel test system as required.

l  Multi ports: USB, RS232, LAN and other ports, PLC simulation, TCP/IP network protocol, etc., to facilitate data interaction and instrument control.

Product application

Test items

  • Motor: withstand voltage, insulation, resistance, back electromotive force, no load, speed, Hall, rotation

Test cases

Technical specifications
