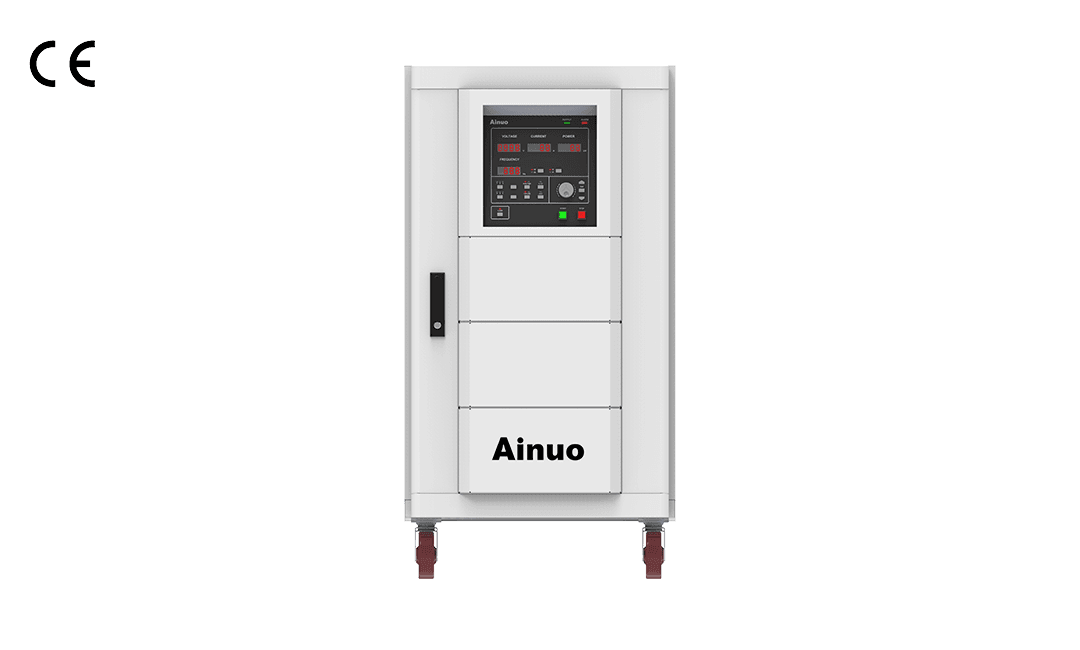

The ANFP(F) series high-power programmable AC power Source adopts FPGA digital control, instantaneous waveform control, and high-frequency pulse width modulation (SPWM) technologies. It has the advantages of fast response speed, high output accuracy, and superior waveform quality; it can withstand 3 times the rating Current impact capability, strong load adaptability; with multiple output modes and complex programmable functions, which can achieve test requirements such as ladder, step, gradual change, etc.; with three-phase unbalanced output mode, to achieve relevant regulatory tests or simulate special power grids And so on. It can be widely used in laboratories, quality inspection units, scientific research institutes, and certification centers.
Adopt FPGA digital technology, realize accuracy control and high-quality sine wave output;
Advanced power management mode: three-phase standard mode, three-phase unbalanced mode (three-phase voltage can be adjusted independently, phase difference 0~359.9° adjustable), three-phase independent mode (three-phase voltage, frequency can be adjusted independently), parallel single-phase mode (three-phase parallel, single-phase output);
Programmable step, stage, and variation functions can realize relevant regulations;
Harmonic function, 2-40 times superposition;
Operating in overcurrent shock (up to 3 times of rated current)within 2s, start the impact load of 1/3 capacity of the power supply directly;
Adjustable voltage and frequency during output status, frequency change without transit time;
Measurement: voltage, current, current peak, frequency, active power, apparent power, power factor, voltage peak factor;
Online monitoring: monitor IGBT temperature, transformer temperature, fan speed, input voltage, and other parameters during output status;
Operating data recorders: keep a record of power supply status and alarm code automatically during alarming, saving maintenance time;
Fan speed will be adjustable automatically with the temperature of the power supply to reduce the noise;
Lock key, user-friendly design, automatically locks without operation for 5 minutes to prevent operation mistakes;
Combination cabinet, 8" large-screen color LCD;
Standard RS232, optional RS485, GPIB, Ethernet, analog control, and other remote communication/control.
l Over shock capacity: impact load of 1/3 capacity of power supply directly without soft start;

l Output mode management (standard three-phase output, separated three-phase output, parallel single-phase output)

· Programmable Output(Step,Stage,Varations)

l Three-phase unbalanced output (amplitude unbalance + angle unbalance)

l Harmonic

l PC control software

l Large-size color LCD, digital key input, knob operation

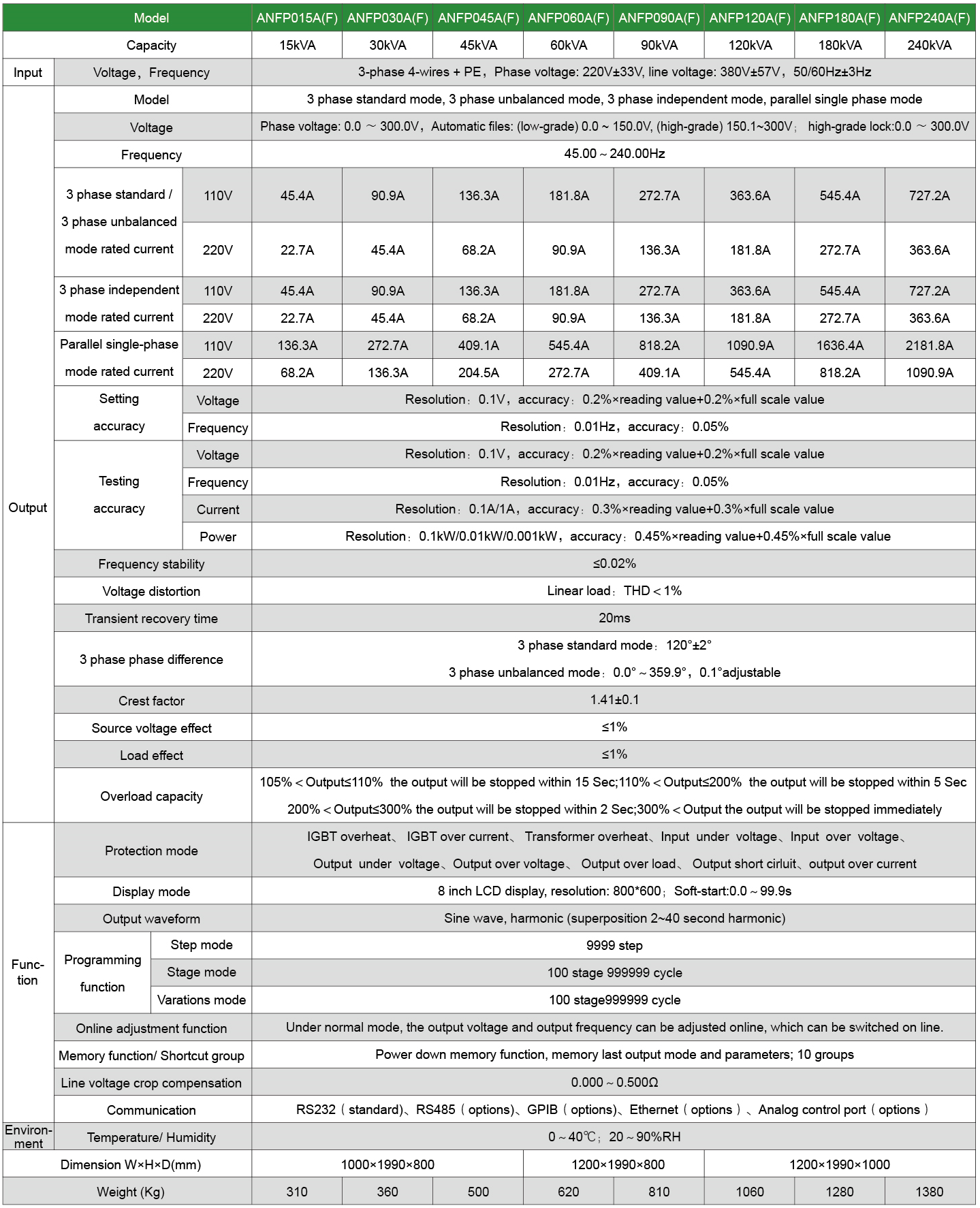

| Model | ANFP015A(F) | ANFP030A(F) | ANFP045A(F) | ANFP060A(F) | ANFP090A(F) | ANFP120A(F) | ||
| Capacity | 15kVA | 30kVA | 45kVA | 60kVA | 90kVA | 120kVA | ||
| Input | Voltage/Frequency | 3-phase 4-wire + PE,Phase voltage: 220V±33V, line voltage: 380V±57V,50/60Hz±3Hz | ||||||
| Output | Mode | 3-phase standard mode, 3-phase unbalanced mode, 3-phase independent mode, parallel single-phase mode | ||||||
| Voltage | Phase voltage: 0.0 - 300.0V, Automatic state: (low-grade) 0.0 - 150.0V, (high-grade) 150.1 - 300V; high-grade lock:0.0 - 300.0V | |||||||
| Frequency | 40.00 - 240.00Hz | |||||||
3-Phase standard/3-Phase Unbalanced Mode Rated Current | 110V | 45.4A | 90.9A | 136.3A | 181.8A | 272.7A | 363.6A | |
| 220V | 22.7A | 45.4A | 68.2A | 90.9A | 136.3A | 181.8A | ||
| 3-phase Independent Mode Rated Current | 110V | 45.4A | 90.9A | 136.3A | 181.8A | 272.7A | 363.6A | |
| 220V | 22.7A | 45.4A | 68.2A | 90.9A | 136.3A | 181.8A | ||
| Parallel Single-phase Mode Rated Current | 110V | 136.3A | 272.7A | 409.1A | 545.4A | 818.2A | 1090.9A | |
| 220V | 68.2A | 136.3A | 204.5A | 272.7A | 409.1A | 545.4A | ||
Setting Accuracy | Voltage | Resolution: 0.1V; Accuracy: 0.2%×reading value+0.2%×full scale value | ||||||
| Frequency | Resolution: 0.01Hz; Accuracy: 0.05% | |||||||
Testing Accuracy | Voltage | Resolution: 0.1V; Accuracy: 0.2%×reading value+0.2%×full scale value | ||||||
| Frequency | Resolution: 0.01Hz; Accuracy: 0.05% | |||||||
| Current | Resolution: 0.1A/1A; Accuracy: 0.3%×reading value+0.3%×full scale value | |||||||
| Power | Resolution: 0.1kW/0.01kW/0.001kW; Accuracy: 0.45%×reading value+0.45%×full scale value | |||||||
| Voltage Distortion | Linear load: THD<1% | |||||||
| Transient Recovery time | 20ms | |||||||
Three-Phase Phase Difference | 3-phase standard mode: 120°±2° | |||||||
| 3-phase unbalanced mode: 0.0° - 359.9°, 0.1°adjustable | ||||||||
| Crest Factor | 1.41±0.1 | |||||||
| Source Voltage Effect | ≤1% | |||||||
Load Effect | ≤1% | |||||||
| Overload Capacity | 105%<Output≤110% the output will be stopped within 15s 110%<Output≤200% the output will be stopped within 5s 200%<Output≤300% the output will be stopped within 2s 300%<Output the output will be stopped immediately | |||||||
| Protection Mode | IGBT overheat, IGBT overcurrent, Transformer overheat, Input under voltage, Input over voltage, Output under voltage, Output over voltage, Output overload, Output short circuit, output over current | |||||||
| Function | Display Mode | 8-inch LCD display, resolution: 800*600; Soft-start: 0.0 - 99.9s | ||||||
| Output Waveform | Sine wave, harmonic (superposition 2 - 40 second harmonic) | |||||||
Programming Function | Step Mode | 9999 step | ||||||
| Stage Mode | 100 stage 999999 cycle | |||||||
| Variations Mode | 100 stage 999999 cycle | |||||||
| Online Adjustment Function | Under normal mode, the output voltage and output frequency can be adjusted online, which can be switched on line. | |||||||
| Memory Function/Shortcut Group | Power-down memory function, memory last output mode and parameters; 10 groups | |||||||
| Line Voltage Crop Compensation | 0.000 - 0.500Ω | |||||||
| Communication | RS232(standard), RS485(options), GPIB(options), Ethernet(options), Analog control port(options) | |||||||
| Environment | Temperature/Humidity | 0 - 40℃; 20 - 90%RH | ||||||
| Dimensions(W*H*D mm) | 1000*1990*800 | 1200*1990*800 | 1200*1990*1000 | |||||
| Weight | 310Kg | 360Kg | 500Kg | 620Kg | 810Kg | 1060Kg | ||

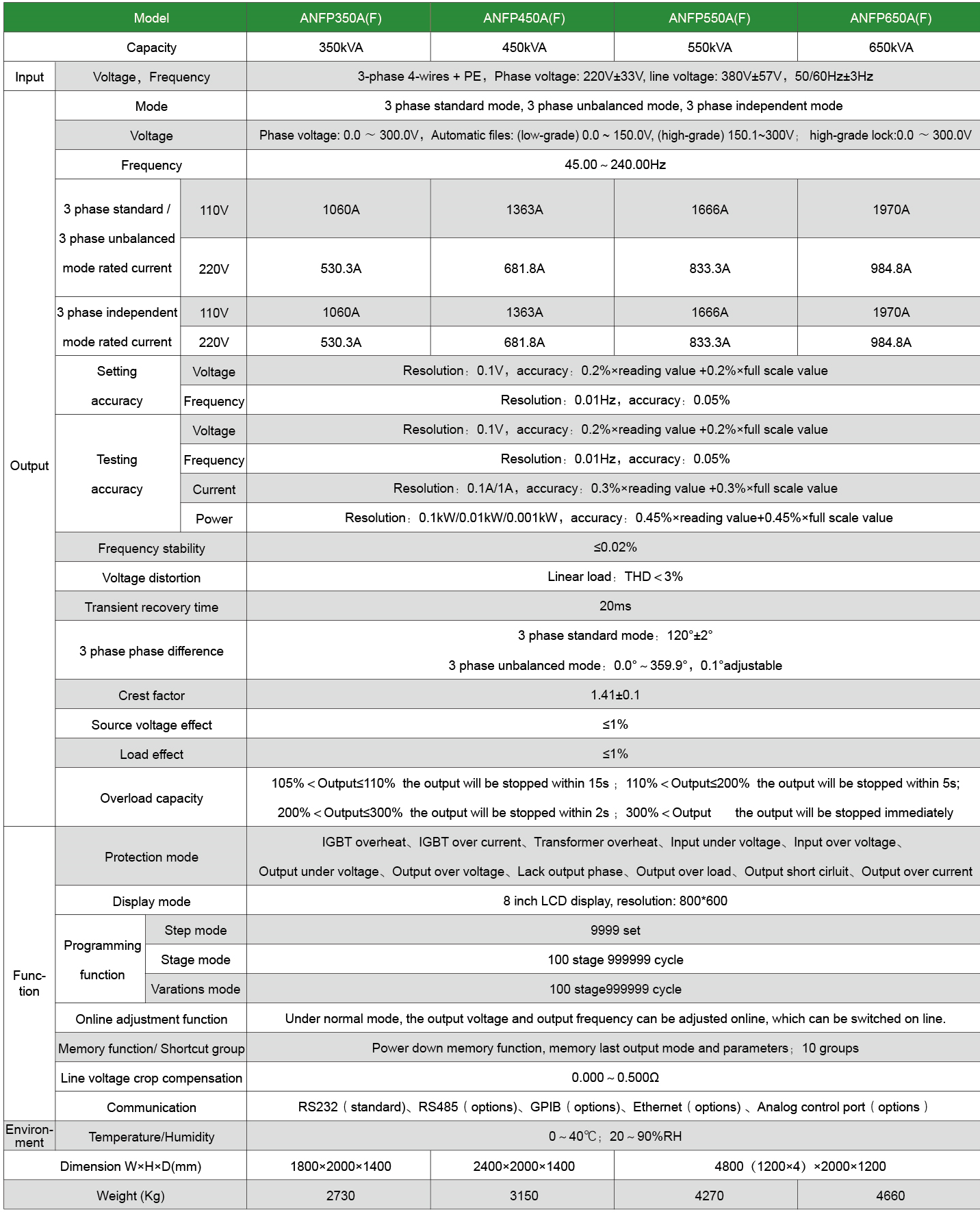

| Model | ANFP180A(F) | ANFP240A(F) | ANFP350A(F) | ANFP450A(F) | ANFP550A(F) | ANFP650A(F) | ||
| Capacity | 180kVA | 240kVA | 350kVA | 450kVA | 550kVA | 650kVA | ||
| Input | Voltage/Frequency | 3-phase 4-wire + PE,Phase voltage: 220V±33V, line voltage: 380V±57V,50/60Hz±3Hz | ||||||
| Output | Mode | 3-phase standard mode, 3-phase unbalanced mode, 3-phase independent mode, parallel single-phase mode | ||||||
| Voltage | Phase voltage: 0.0 - 300.0V, Automatic state: (low-grade) 0.0 - 150.0V, (high-grade) 150.1 - 300V; high-grade lock:0.0 - 300.0V | |||||||
| Frequency | 40.00 - 240.00Hz | |||||||
3-Phase standard/3-Phase Unbalanced Mode Rated Current | 110V | 545.4A | 727.2A | 1060A | 1363A | 1666A | 1970A | |
| 220V | 272.7A | 363.6A | 530.3A | 681.8A | 833.3A | 984.8A | ||
| 3-phase Independent Mode Rated Current | 110V | 545.4A | 727.2A | 1060A | 1363A | 1666A | 1970A | |
| 220V | 272.7A | 363.6A | 530.3A | 681.8A | 833.3A | 984.8A | ||
| Parallel Single-phase Mode Rated Current | 110V | 1636.4A | 2181.8A | / | ||||
| 220V | 818.2A | 1090.9A | / | |||||
Setting Accuracy | Voltage | Resolution: 0.1V; Accuracy: 0.2%×reading value+0.2%×full scale value | ||||||
| Frequency | Resolution: 0.01Hz; Accuracy: 0.05% | |||||||
Testing Accuracy | Voltage | Resolution: 0.1V; Accuracy: 0.2%×reading value+0.2%×full scale value | ||||||
| Frequency | Resolution: 0.01Hz; Accuracy: 0.05% | |||||||
| Current | Resolution: 0.1A/1A; Accuracy: 0.3%×reading value+0.3%×full scale value | |||||||
| Power | Resolution: 0.1kW/0.01kW/0.001kW; Accuracy: 0.45%×reading value+0.45%×full scale value | |||||||
| Voltage Distortion | Linear load: THD<1% | |||||||
| Transient Recovery time | 20ms | |||||||
Three-Phase Phase Difference | 3-phase standard mode: 120°±2° | |||||||
| 3-phase unbalanced mode: 0.0° - 359.9°, 0.1°adjustable | ||||||||
| Crest Factor | 1.41±0.1 | |||||||
| Source Voltage Effect | ≤1% | |||||||
Load Effect | ≤1% | |||||||
| Overload Capacity | 105%<Output≤110% the output will be stopped within 15s 110%<Output≤200% the output will be stopped within 5s 200%<Output≤300% the output will be stopped within 2s 300%<Output the output will be stopped immediately | |||||||
| Protection Mode | IGBT overheat, IGBT overcurrent, Transformer overheat, Input under voltage, Input over voltage, Output under voltage, Output over voltage, Output overload, Output short circuit, output over current | |||||||
| Function | Display Mode | 8-inch LCD display, resolution: 800*600; Soft-start: 0.0 - 99.9s | ||||||
Programming Function | Step Mode | 9999 step | ||||||
| Stage Mode | 100 stage 999999 cycle | |||||||
| Variations Mode | 100 stage 999999 cycle | |||||||
| Online Adjustment Function | Under normal mode, the output voltage and output frequency can be adjusted online, which can be switched online. | |||||||
| Memory Function/Shortcut Group | Power-down memory function, memory last output mode and parameters; 10 groups | |||||||
| Line Voltage Crop Compensation | 0.000 - 0.500Ω | |||||||
| Communication | RS232(standard), RS485(options), GPIB(options), Ethernet(options), Analog control port(options) | |||||||
| Environment | Temperature/Humidity | 0 - 40℃; 20 - 90%RH | ||||||
| Dimensions(W*H*D mm) | 1000*1990*800 | 1800*2000*1400 | 2400*2000*1400 | 3000(1400+1600)*1900*1400 | ||||
| Weight | 1280Kg | 1380Kg | 2730Kg | 3150Kg | 4270Kg | 4660Kg | ||
