Programmable Bidirectional DC Power Supply ANEVH(F)

Product overview

ANEVH(F) series is a programmable bidirectional DC power supply that integrates a DC power supply and a feedback load, which can be used as a "source" and output power; or used as a load to realize sink function, absorbing power and returning to the grid cleanly; standard dual-quadrant operation.

The ANEVH(F) series programmable bidirectional DC power supply covers 7 voltage levels, covering 0V-2250V, supporting multiple parallel machines, and the power can be expanded up to 1MW; bidirectional energy flow, automatic seamless switching, high power density, fast dynamic response, built-in function generator and standard test curve to generate a variety of waves, excellent characteristics and rich test functions, suitable for testing applications in laboratory, automotive electronics, new energy three power, micro-grid, high-power test and other applications.

Ainuo Programmable Bidirectional DC Power Supply

Multiple parallel units for higher power and current outputs

Product features

Integrating source and load functions into one, full series 3U standard chassis.
High-frequency PWM rectification and bidirectional DCDC technology. Eliminate the noise of the conventional high-power bidirectional power supply.
Higher power density, compact, high speed.
Energy flows in both directions. Automatically and seamlessly forward/reverse switching.
Feedback efficiency up to 95%, energy saving, and environmental protection.

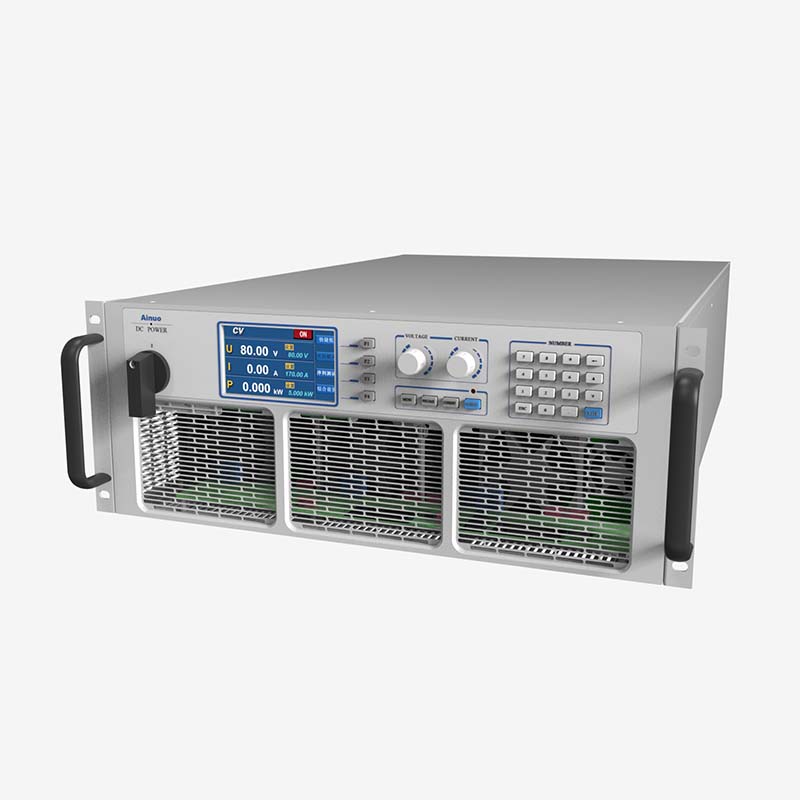

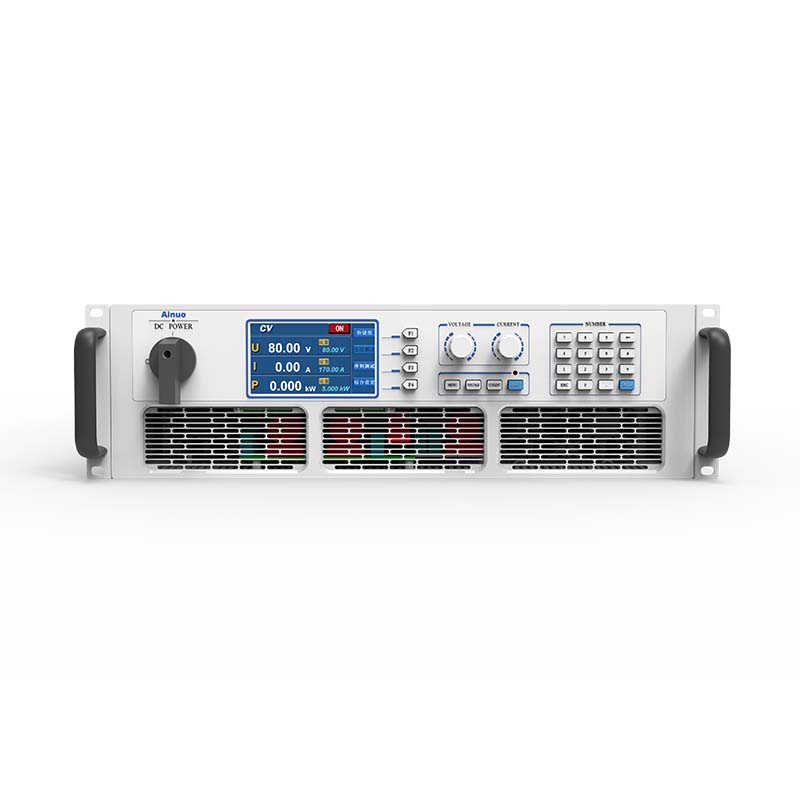

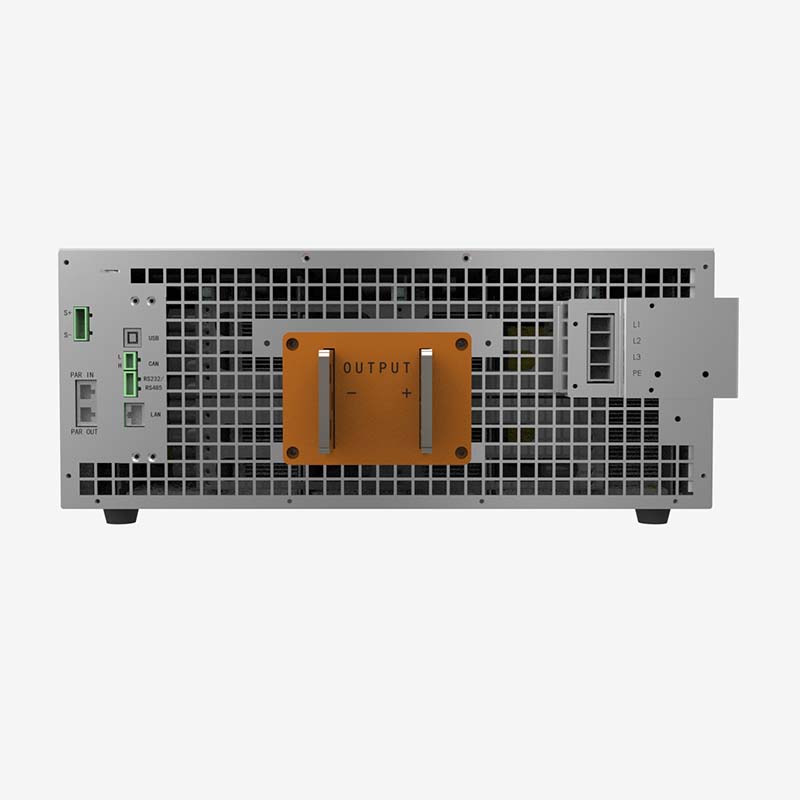

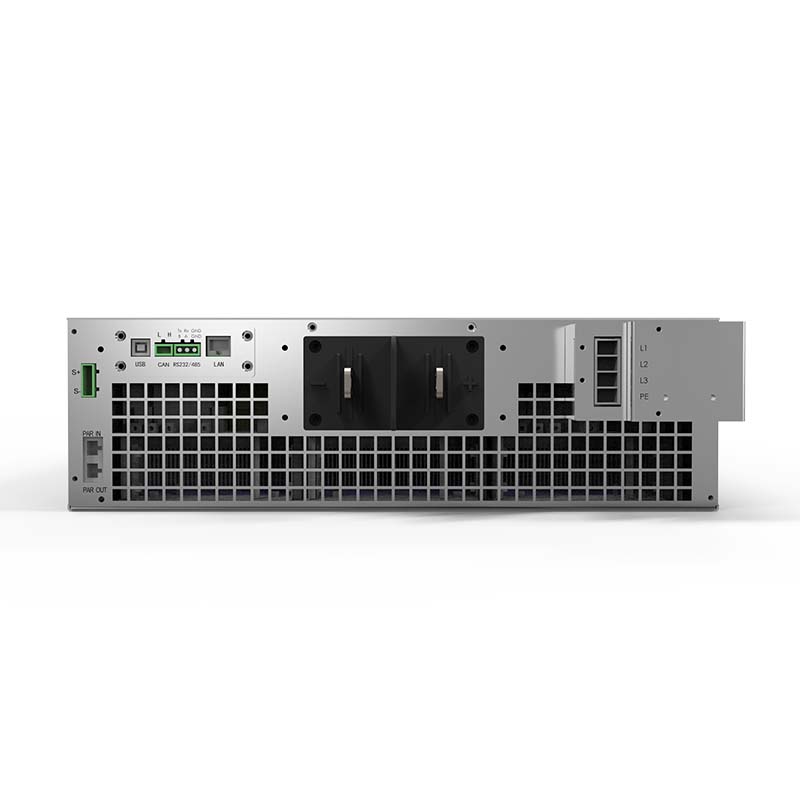

Actual Graph of Ainuo Programmable Bidirectional DC Power Supply

Voltage: 7 levels, covering 0-2250V, the industry's highest voltage level, with unique high-voltage series technology
Built-in function generator, supports arbitrary wave generation
Built-in voltage curves for DIN40839, ISO-16750-2, and ISO21848 standard automotive grids
Simulate a variety of solar cell output characteristics (Fill Factor)
Test the maximum power point tracking (MPPT) capability and efficiency
Accurate voltage and current measurement
Serial output can be set to test the PV inverter's operating voltage range
Comprehensive OTP, OVP, OCP, OPP protection.
S terminal compensation
Solar cell I-V curve simulation
Standard RS232 interface
Standard graphical PC operating software. Single operation available
Simulate the I-V curve under different temperature and illumination conditions

Bidirectional DC Power Supply ANEVH(F)

Product application

Micro-grid and micro-inverter testing
Automotive motor, controller, and power battery testing
Fuel cell test, fuel cell DCDC test
UPS, on-board charger (OBC), charging spot, bidirectional DC-DC test
Industrial testing for electrolysis, electroplating, welding, etc.
Testing of the communication power supply, LED product
Testing of automotive electronics, avionics
High power test, DC feedback load demand application

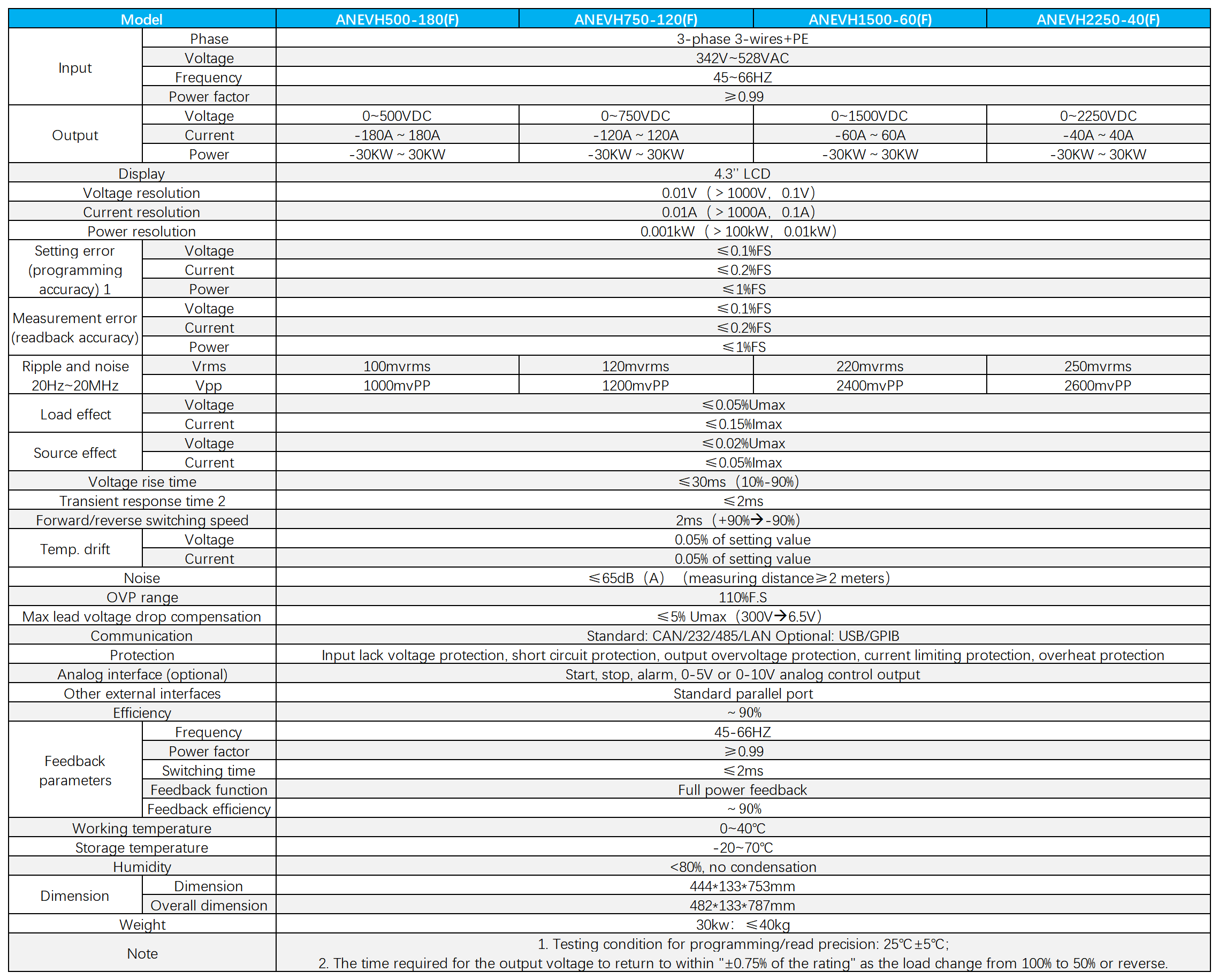

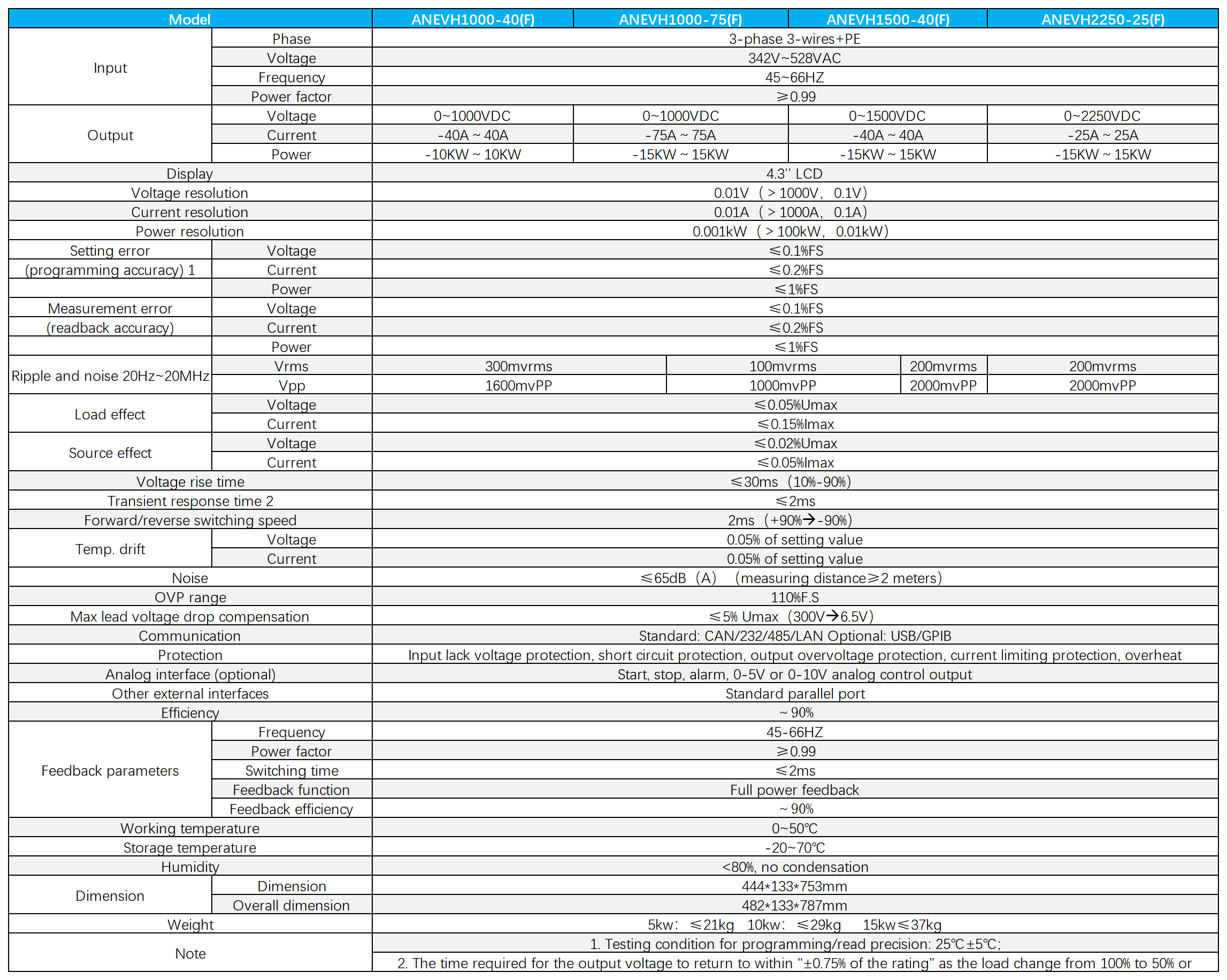

Technical specifications

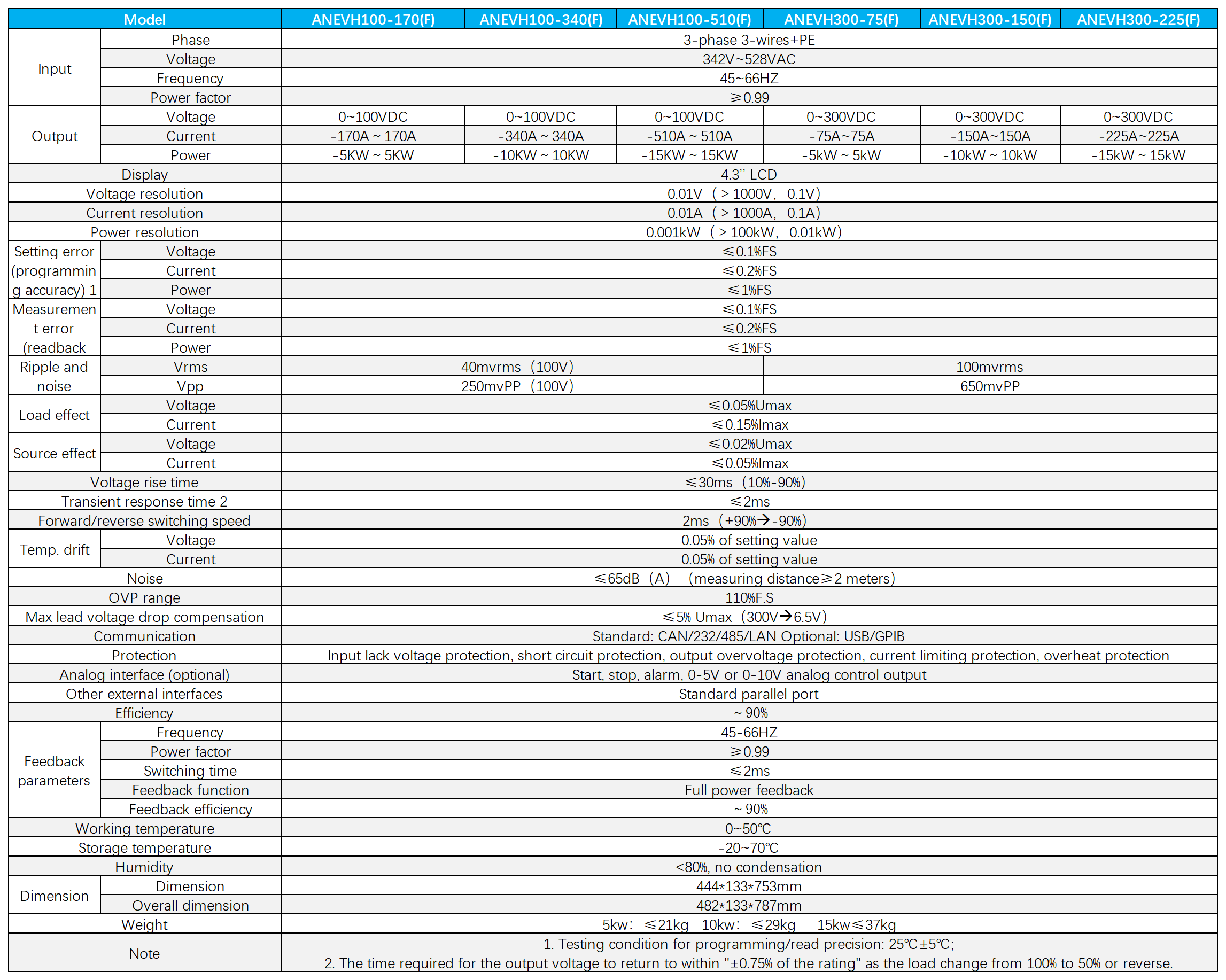

Model		ANEVH100-170(F)	ANEVH100-200(F)	ANEVH100-340(F)	ANEVH100-400(F)	ANEVH100-510(F)	ANEVH100-600(F)	ANEVH300-75(F)	ANEVH300-150(F)	ANEVH300-225(F)
Input	Phase Number	Three-phase three-wire+PE
	Voltage	342V - 528VAC
	Frequency	45 - 66HZ
	Power Factor	≥0.99
Output	Voltage	0 - 100V						0 - 300V
	Current	-170A - 170A	-200A - 200A	-340A - 340A	-400A - 400A	-510A - 510A	-600A - 600A	-75A - 75A	>-150A - 150A	-225A - 225A
	Power	-5kW - 5kW	-5kW - 5kW	-10kW - 10kW	-10kW - 10kW	-15kW - 15kW	-15kW - 15kW	-5kW - 5kW	-10kW - 10kW	-15kW - 15kW
Display Mode		4.3-inch color LCD
Voltage Resolution		0.01V (0.1V when >1000V)
Current Resolution		0.01A (0.1A when >1000A)
Power Resolution		0.001kW (0.01kW when >100kW)
Setup Error (Programming Accuracy)*	Voltage	≤0.05%F.S.
	Current	≤0.1%F.S.
	Power	≤1%FS	≤0.2%FS	≤1%FS	≤0.2%FS	≤1%FS	≤0.2%FS	≤1%FS	≤1%FS	≤1%FS
Measurement Error (Read-back Accuracy)*	Voltage	≤0.05%F.S.
	Current	≤0.1%F.S.
	Power	≤1%FS	≤0.2%FS	≤1%FS	≤0.2%FS	≤1%FS	≤0.2%FS	≤1%FS	≤1%FS	≤1%FS
Ripple and Noise 20Hz-20MHz	Vms	40mVrms(100V)						100mVrms
	Vpp	250mVpp(100V)						650mVpp
Load Effect	Voltage	≤0.01%Umax
	Current	≤0.05%Imax
Source Effect	Voltage	≤0.01%Umax
	Current	≤0.01%Imax
Transient Response Time*		≤2ms
Forward and Reverse Switching Speed		2ms(+90%-90%)
Temperature Drift	Voltage	0.05% setting value
	Current	0.05% setting value
Noise		≤65dB(A)(Measurement distance ≥ 2 meters)
OVP Range		110%F.S
Maximum Lead Voltage Drop Compensation		≤5% Umax(300V 6.5V)
Communication Function		Standard: CAN/232/485/LAN/USB, optional: GPIB
Protection Functions		Input undervoltage protection, short-circuit protection, output overvoltage/current-limiting protection, and internal overheating protection.
Analog Interface (Optional)		Start, stop, alarm, 0-5V or 0-10V analog control output
Other External Interfaces		Standard configuration for parallel ports
Efficiency		90%
Feedback Parameters	Frequency	45 - 66HZ
	Power Factor	≥0.99
	Switching time	≤2ms
	Feedback Function	Full power range feedback
	Feedback Efficiency	90%
Operating Temperature		0℃ - 40℃
Storage Temperature		-20℃ - 70℃
Humidity		＜80%, without condensation
Volume (WHD mm)	Enclosure Size	444132.5705.5
	Overall Dimensions	444132.5768
Weight		5kW: ≤23kg; 10kW: ≤31kg; 15kW≤38kg
Remarks		1 & 2. Programming accuracy/read-back accuracy test condition (25℃±5℃); *3. Time required for the load to change from 100% to 50% or in reverse, and for the output voltage to return to within "rated value±0.75%"

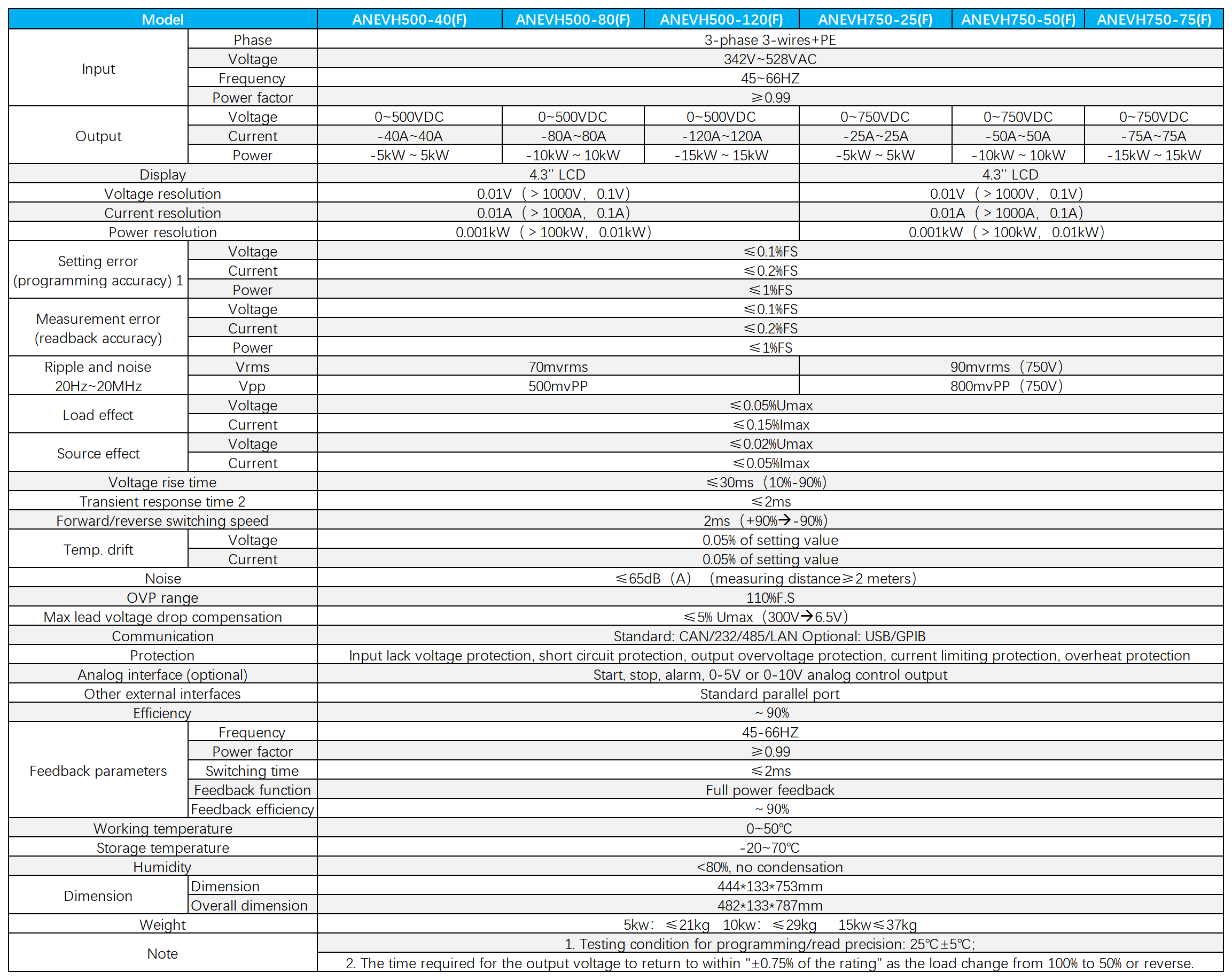

Model		ANEVH500-40(F)	ANEVH500-80(F)	ANEVH500-120(F)	ANEVH750-25(F)	ANEVH750-50F)	ANEVH750-75(F)	ANEVH1000-40(F)	ANEVH1000-75(F)	ANEVH1500-40(F)	ANEVH2250-25(F)
Input	Phase Number	Three-phase three-wire+PE
	Voltage	342V - 528VAC
	Frequency	45 - 66HZ
	Power Factor	≥0.99
Output	Voltage	0 - 500V			0 - 750V			0 - 1000V		0 - 1500V	0 - 2250V
	Current	-40A - 40A	-80A - 80A	-120A - 120A	-25A - 25A	-50A - 50A	-75A - 75A	-40A - 40A	-75A - 75A	-40A - 40A	-25A - 25A
	Power	-5kW - 5kW	-10kW - 10kW	-15kW - 15kW	-5kW - 5kW	-10kW - 10kW	-15kW - 15kW	-10kW - 10kW	-15kW - 15kW	-15kW - 15kW	-15kW - 15kW
Display Mode		4.3-inch color LCD
Voltage Resolution		0.01V (0.1V when >1000V)
Current Resolution		0.01A (0.1A when >1000A)
Power Resolution		0.001kW (0.01kW when >100kW)
Setup Error (Programming Accuracy)*	Voltage	≤0.05%F.S.
	Current	≤0.1%F.S.
	Power	≤1%FS
Measurement Error (Read-back Accuracy)*	Voltage	≤0.05%F.S.
	Current	≤0.1%F.S.
	Power	≤1%FS
Ripple and Noise 20Hz-20MHz	Vms	70mVrms			90mVrms(750V)			300mVrms	100mVrms	200mVrms
	Vpp	500mVpp			800mVpp(750V)			1600mVpp	1000mVpp	2000mVpp
Load Effect	Voltage	≤0.01%Umax
	Current	≤0.05%Imax
Source Effect	Voltage	≤0.01%Umax
	Current	≤0.01%Imax
Transient Response Time*		≤2ms
Forward and Reverse Switching Speed		2ms(+90%-90%)
Temperature Drift	Voltage	0.05% setting value
	Current	0.05% setting value
OVP Range		110%F.S
Maximum Lead Voltage Drop Compensation		≤5% Umax(300V 6.5V)
Communication Function		Standard: CAN/232/485/LAN/USB, optional: GPIB
Protection Functions		Input undervoltage protection, short-circuit protection, output overvoltage/current limiting protection, and internal overheating protection.
Analog Interface (Optional)		Start, stop, alarm, 0-5V or 0-10V analog control output
Other External Interfaces		Standard configuration for parallel ports
Efficiency		90%
Feedback Parameters	Frequency	45 - 66HZ
	Power Factor	≥0.99
	Switching time	≤2ms
	Feedback Function	Full power range feedback
	Feedback Efficiency	90%
Operating Temperature		0℃ - 40℃
Storage Temperature		-20℃ - 70℃
Humidity		＜80%, without condensation
Volume (WHD mm)	Enclosure Size	444132.5705.5
	Overall Dimensions	444132.5768
Weight		5kW: ≤23kg; 10kW: ≤31kg; 15kW≤38kg
Remarks		1 & 2. Programming accuracy/read-back accuracy test condition (25℃±5℃); *3. Time required for the load to change from 100% to 50% or in reverse, and for the output voltage to return to within "rated value±0.75%"

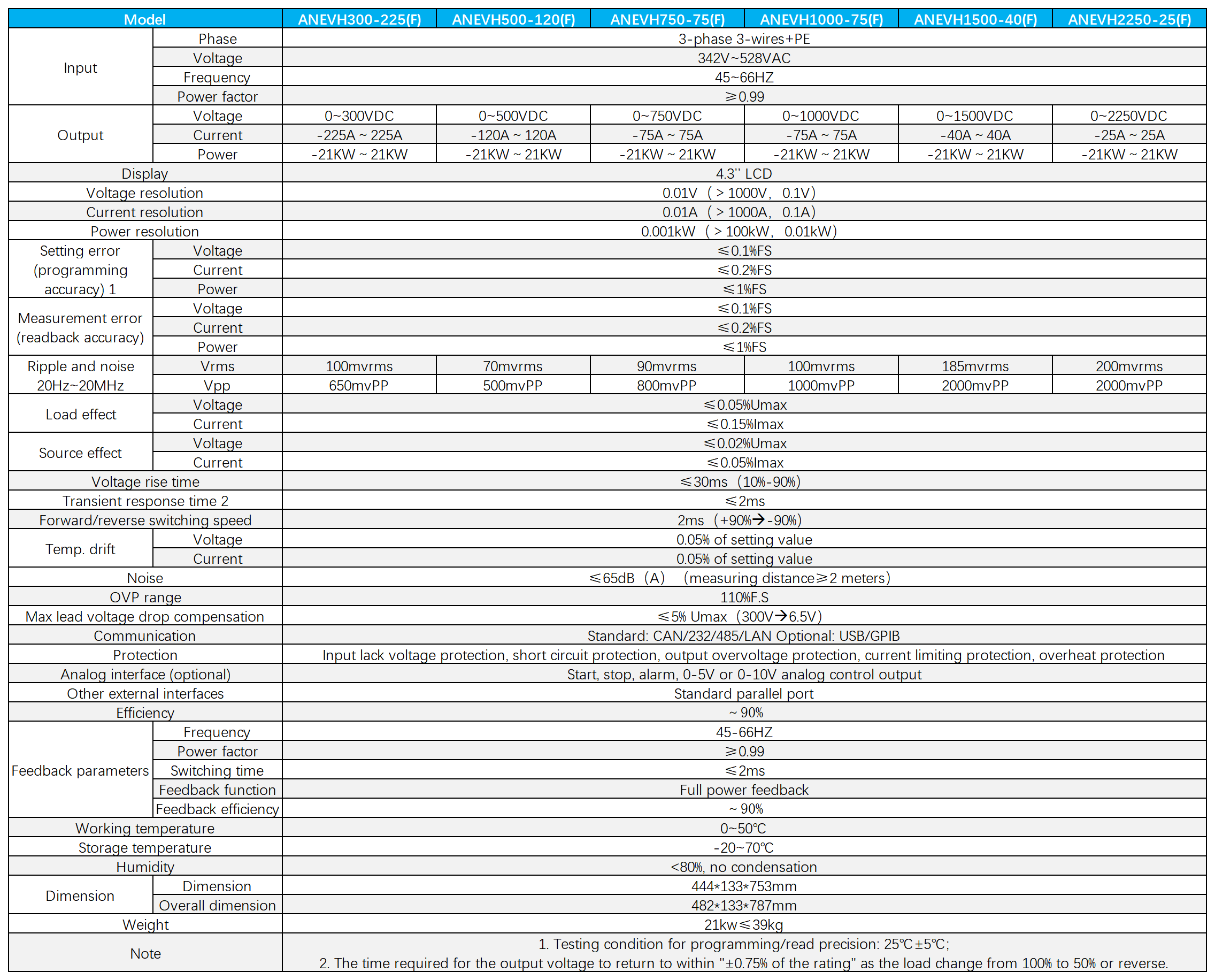

Model		ANEVH300-225(F)	ANEVH500-160(F)	ANEVH750-120(F)	ANEVH1000-80(F)	ANEVH1500-60F)	ANEVH2250-50(F)	ANEVH300-300(F)	ANEVH500-240(F)	ANEVH750-180(F)	ANEVH1500-80(F)
Input	Phase Number	Three-phase three-wire+PE
	Voltage	342V - 528VAC
	Frequency	45 - 66HZ
	Power Factor	≥0.99
Output	Voltage	0 - 500V	0 - 500V	0 - 750V	0 - 1000V	0 - 1500V	0 - 2250V	0 - 300V	0 - 500V	0 - 750V	0 - 1500V
	Current	-225A - 225A	-160A - 160A	-120A - 120A	-80A - 80A	-60A - 60A	-50A - 50A	-300A - 300A	-240A - 240A	-180A - 180A	-80A - 80A
	Power	-21kW - 21kW	-21kW - 21kW	-21kW - 21kW	-21kW - 21kW	-21kW - 21kW	-21kW - 21kW	-30kW - 30kW	-30kW - 30kW	-30kW - 30kW	-30kW - 30kW
Display Mode		4.3-inch color LCD
Voltage Resolution		0.01V (0.1V when >1000V)
Current Resolution		0.01A (0.1A when >1000A)
Power Resolution		0.001kW (0.01kW when >100kW)
Setup Error (Programming Accuracy)*	Voltage	≤0.05%F.S.
	Current	≤0.1%F.S.
	Power	≤1%FS
Measurement Error (Read-back Accuracy)*	Voltage	≤0.05%F.S.
	Current	≤0.1%F.S.
	Power	≤1%FS
Ripple and Noise 20Hz-20MHz	Vms	100mVrms	80mVrms	80mVrms	220mVrms	220mVrms	400mVrms	70mVrms	80mVrms	80mVrms	220mVrms
	Vpp	650mVpp	750mVpp	800mVpp	1600mVpp	1800mVpp	2400mVpp	650mVpp	800mVpp	1800mVpp
Load Effect	Voltage	≤0.01%Umax						≤0.02%Umax	≤0.01Umax
	Current	≤0.05%Imax						≤0.05%Imax	≤0.05Imax
Source Effect	Voltage	≤0.01%Umax						≤0.02%Umax	≤0.01%Umax
	Current	≤0.01%Imax						≤0.02%Imax	≤0.01%Imax
Transient Response Time*		≤2ms
Forward and Reverse Switching Speed		2ms(+90% - 90%)
Temperature Drift	Voltage	0.05% setting value
	Current	0.05% setting value
OVP Range		110%F.S
Maximum Lead Voltage Drop Compensation		≤5% Umax(300V 6.5V)
Communication Function		Standard: CAN/232/485/LAN/USB, optional: GPIB
Protection Functions		Input undervoltage protection, short-circuit protection, output overvoltage/current limiting protection, and internal overheating protection.
Analog Interface (Optional)		Start, stop, alarm, 0-5V or 0-10V analog control output
Other External Interfaces		Standard configuration for parallel ports
Efficiency		90%
Feedback Parameters	Frequency	45 - 66HZ
	Power Factor	≥0.99
	Switching time	≤2ms
	Feedback Function	Full power range feedback
	Feedback Efficiency	90%
Operating Temperature		0℃ - 40℃
Storage Temperature		-20℃ - 70℃
Humidity		＜80%, without condensation
Volume (WHD mm)	Enclosure Size	444132.5705.5
	Overall Dimensions	444132.5768
Weight		21kW: ≤39kg						30kW: ≤40kg
Remarks		1 & 2. Programming accuracy/read-back accuracy test condition (25℃±5℃); *3. Time required for the load to change from 100% to 50% or in reverse, and for the output voltage to return to within "rated value±0.75%"

Model		ANEVH80-680(F)	ANEVH80-1020(F)	ANEVH2250-60(F)	ANEVH300-450(F)	ANEVH1000-150(F)	ANEVH500-390(F)	ANEVH1500-130(F)	ANEVH750-300(F)	ANEVH2250-100(F)
Input	Phase Number	Three-phase three-wire+PE
	Voltage	342V - 528VAC
	Frequency	45 - 66HZ
	Power Factor	≥0.99
Output	Voltage	0 - 80V	0 - 80V	0 - 2250V	0 - 300V	0 - 1000V	0 - 500V	0 - 1500V	0 - 750V	0 - 2250V
	Current	-680A - 680A	-1020A - 1020A	-60A - 60A	-450A - 450A	-150A - 150A	-390A - 390A	-130A - 130A	-300A - 300A	-100A - 100A
	Power	-20kW - 20kW	-30kW - 30kW	-30kW - 30kW	-50kW - 50kW	-50kW - 50kW	-50kW - 50kW	-50kW - 50kW	-50kW - 50kW	-50kW - 50kW
Display Mode		4.3-inch color LCD
Voltage Resolution		0.01V (0.1V when >1000V)
Current Resolution		0.01A (0.1A when >1000A)
Power Resolution		0.001kW (0.01kW when >100kW)
Internal Resistance Resolution		0.001Ω (0.01Ω when >100Ω, 0.1Ω when>1000Ω)
Setup Error (Programming Accuracy)*	Voltage	≤0.05%F.S.
	Current	≤0.1%F.S.
	≤1%FS
	Internal Resistance	/			①				/
Measurement Error (Read-back Accuracy)*	Voltage	≤0.05%F.S.
	Current	≤0.1%F.S.
	Power	≤1%FS	≤0.2%FS	≤1%FS	≤0.2%FS	≤1%FS	≤0.2%FS	≤1%FS	≤1%FS	≤1%FS
	Internal Resistance	/			①				/
Ripple and Noise 20Hz-20MHz	Vrms	25mVrms	25mVrms	400mVrms	≤80mVrms	≤170mVrms	≤100mVrms	≤200mVrms	≤120mVrms	≤240mVrms
	Vpp	400mVpp	400mVpp	2400mVpp	≤800mVpp	≤1800mVpp	≤1000mVpp	≤2200mVpp	≤1200mVpp	≤2400mVrms
Load Effect	Voltage	≤0.02%Umax		≤0.01%Umax	≤0.02%Umax
	Current	≤0.05%Imax		≤0.05%Imax	≤0.05%Imax
Source Effect	Voltage	≤0.02%Umax		≤0.01%Umax	≤0.02%Umax
	Current	≤0.05%Imax		≤0.01%Imax	≤0.02%Umax
Transient Response Time *		≤2ms
Forward and Reverse Switching Speed		2ms(+90%→-90%)
Temperature Drift	Voltage	0.05% setting value
	Current	0.05% setting value
OVP Range		110%F.S
Maximum Lead Voltage Drop Compensation		≤5% Umax
Communication Function		Standard: CAN/232/485/LAN/USB, optional: GPIB
Protection Functions		Input undervoltage protection, short-circuit protection, output overvoltage, current-limiting protection and internal overheating protection.
Waveform Editing (Sequence		/					/	②	/	②
Analog Interface (Optional)		Start, stop, alarm, 0-5V or 0-10V analog control output
Other External Interfaces		Standard equipped parallel port
Efficiency		93.5%		95%	93.5%		95%
Feedback Parameters	Frequency	45 - 66HZ
	Power Factor	≥0.99
	THD	/					≤5%(typical value ≤1.5% for grid simulator input)
	Switching time	≤2ms
	Feedback Function	Full power range feedback
	Feedback Efficiency	95%		95%
Operating Temperature		0℃ - 40℃
Storage Temperature		-20℃ - 70℃
Humidity		＜80%, without condensation
Volume (WHD mm)	Enclosure Size	444177696.5	444177696.5	444132.5705.5	444132.5705.5
	Overall Dimensions	444177768	444177768	444132.5768	444132.5805
Weight		20kW: ≤ 41kg	30kW: ≤ 53.5kg	30kW: ≤ 40kg	≤ 53kg				50kW: ≤ 53kg
Remarks		1 & 2. Programming accuracy/read-back accuracy test condition (25℃±5℃); *3. Time required for the load to change from 100% to 50% or in reverse, and for the output voltage to return to within "rated value±0.75%" ①：≤ 0.3% of maximum resistance ± 0.1% of maximum current (note: applicable to feedback current above 2A) ②：Conventional waveform editing function and integrated testing standards, which can be graphical
