10kV Electrical Safety Analyzer
Product Model:
AN16310H(F) /AN1635H-10KV(F)Series
Application:
meet the safety testing requirements of various high-voltage insulation products such as photovoltaic modules, high-voltage relays, wires and cables.
Product overview Product features Product application technical specifications
Product overview

  Ainuo 16310H(F) series 10kV intelligent electrical safety analyzer features high precision, high reliability and informationization, with functions including AC withstand voltage, DC withstand voltage, insulation resistance, as well as arc detection, open/short circuit detection, electric shock protection, etc.

  The series of products have wide range, with AC withstand voltage of 10kV/40mA, DC withstand voltage of 10kV/10mA and insulation resistance of 2.5kV/50GΩ.

  The series of products feature intelligent platforms, informatization and automatic interfaces, to meet requirements for intelligent automatic testing.

  The series of products can meet the safety testing requirements of various high-voltage insulation products such as photovoltaic modules, high-voltage relays, wires and cables.


Product features

  Safe and reliablel Main drafting unit of state standards and verification regulations for safety testing products;

  Nearly 30 years of safety testing expertise and follow-up of industry needs;

  Complete electromagnetic, environment, load, operating conditions, fatigue test verification;

  Anti-shock protection, arc detection, open/short circuit detection etc.

  Intelligent automatic

  Smart safety tester: Android system, 7” touch screen, self-learning smart keyboard;

  Barcode recognition: barcode scanning, program matching, automatic startup, data packing;

  Data management: local storage, network transmission, direct connection with MES system;

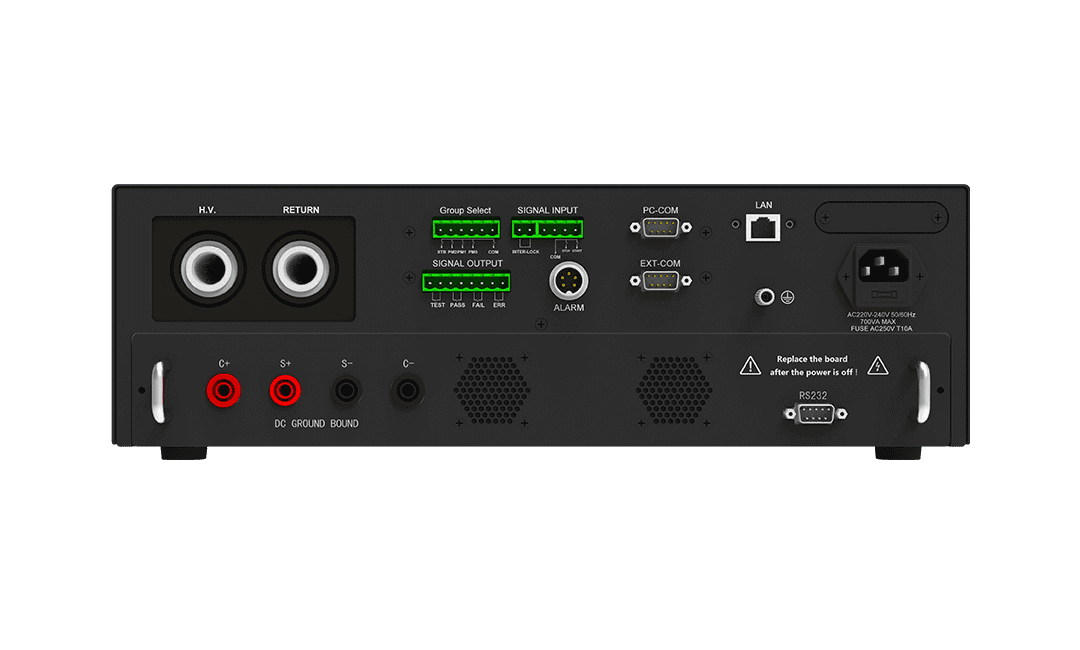

  Rich interfaces: RS232, USB, LAN, WIFI, PLC, I/O control port.


Product application

  The series of products feature intelligent platforms, informatization and automatic interfaces, to meet requirements for intelligent automatic testing.

  The series of products can meet the safety testing requirements of various high-voltage insulation products such as photovoltaic modules, high-voltage relays, wires and cables.


Technical specifications
